The Garmin UHD 2 Chartplotters provide crisp, clean visuals that all anglers love. Available in 5", 6", 7", and 9" units to provide you with a wide variety of options to choose from. Find your unit and transducer combo to outfit your boat or kayak with the latest that Garmin offers with ClearVü and SideVü technology. Distinct high contrast allows you to pinpoint fish and structure, making it easier than ever to break down water. With built-in U.S. LakeVu g3 freshwater lake maps, you can combine the Garmin Navionics+ Coastal or Inland technology to drop waypoints and routes accurately all over the lake. Why talk to a local when you can fish like one? They say locals know best. But anyone who says that hasn't fished with the ECHOMAP UHD2 chart plotters with clear, crisp sonar and mapping.

Key features and benefits:

  • The bright 5", 6", 7", and 9" keyed display is made for convenience
  • Get double the views with Garmin CHIRP traditional, ClearVü, or Side Vü scanning sonars
  • What's under the water looks even better with high-contrast vivid color palettes
  • Wi-Fi® connectivity between compatible chart plotters makes it easy to share info
  • Enjoy No. 1 in mapping with our LakeVü g3 with Navionics® data
  • Units available with either GT20-TM, GT54-TM and GT56-TM transducers
  • Available with Navionics+ Inland or Coastal Mapping

SONAR SUPPORT

With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide.

VIVID COLOR PALETTES

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.

BUNDLE YOUR TRANSDUCER

Your ECHOMAP UHD2 device supports various Garmin transducers for multiple types of sonar: Garmin traditional, ClearVü, and Side Vü scanning sonars.

PRELOADED CHARTS

Know the waters you're in as if you grew up fishing them by using built-in LakeVü g3 inland maps with support for Garmin Navionics+™ Inland or Coastal and Garmin Navionics Vision+™ marine cartography.

WIRELESS NETWORKING

If you have another compatible ECHOMAP UHD2 chartplotter on your boat, wirelessly share information such as sonar, waypoints, and routes with them.

ACTIVECAPTAIN® APP

Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw™ Community data, and more.

In the Box:

  • ECHOMAP UHD2 unit
  • Selected transducer
  • Power/data cable
  • Tilt mount
  • Flush mount
  • Hardware
  • Documentation
MODEL DIMENSION INPUT DISPLAY SIZE DISPLAY RESOLUTION DISPLAY TYPE WEIGHT WATERPROOF MOUNTING OPTIONS

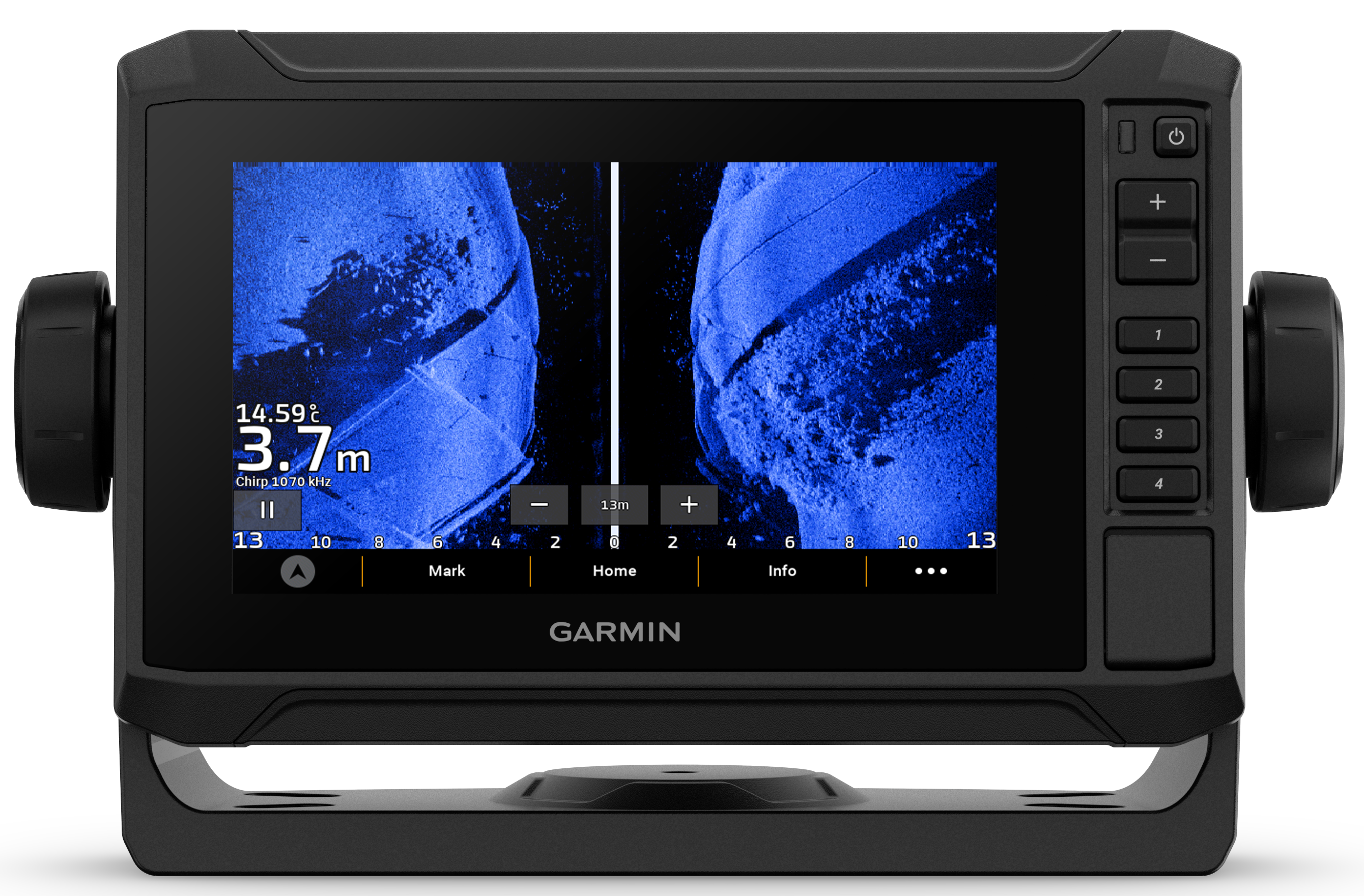

ECHOMAP™ UHD2 5" 7.4" x 4.8" x 2.4" (18.8 x 12.2 x 6.2 cm) Keyed 4.3" x 2.6" (10.9 x 6.6 cm) 800 x 480 pixels WVGA, IPS 1.1 lbs (0.5 kg) IPX7 Bail or Flush
ECHOMAP™ UHD2 6" 8.1" x 5.2" x 2.6" (20.6 x 13.1 x 6.7 cm) Keyed 5.4" x 3.1", 6.2" (13.8 x 7.8, 15.7 cm) 800 x 480 pixels WVGA, TN 1.8 lbs (0.8 kg) IPX7 Bail or Flush

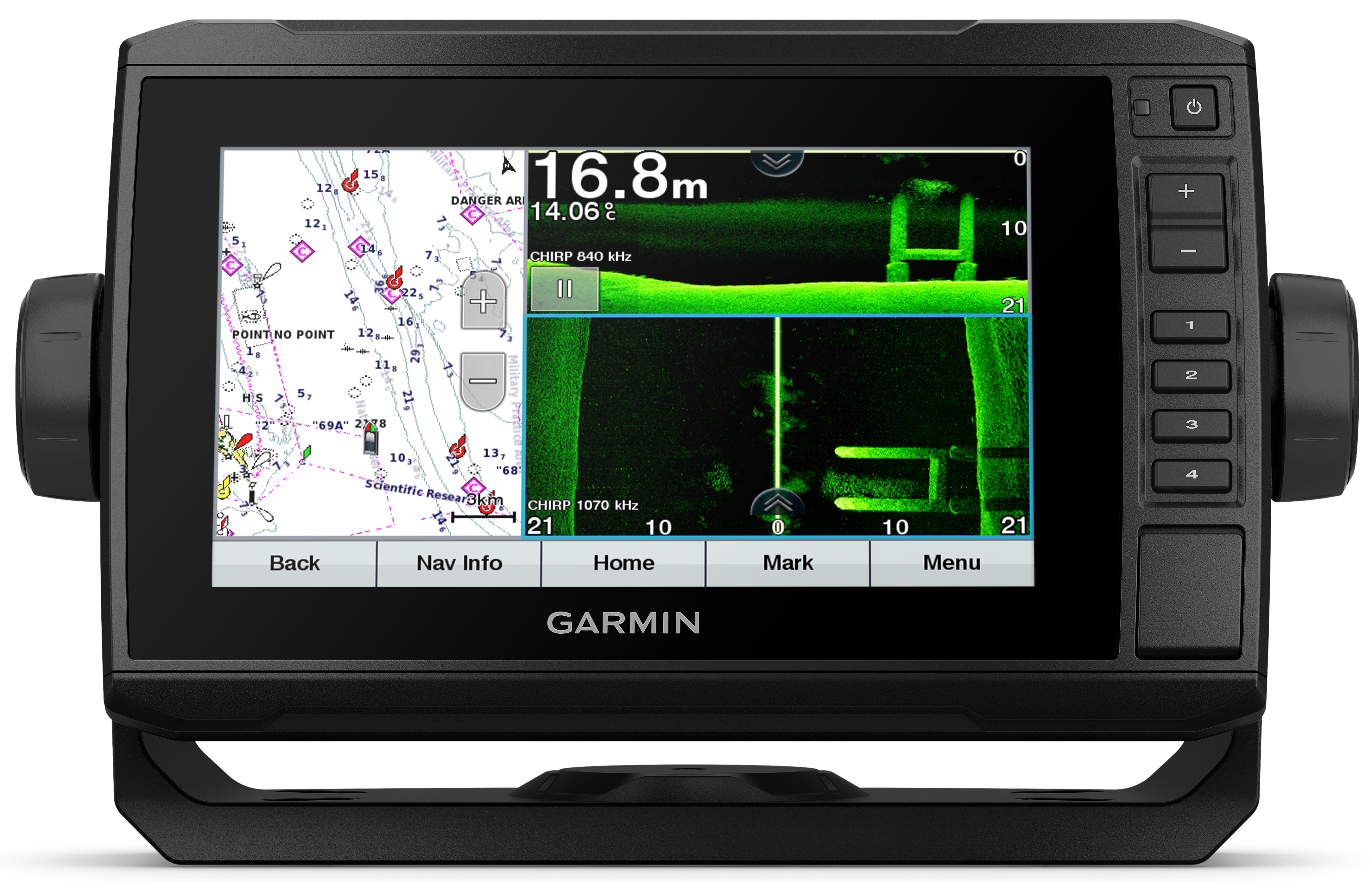

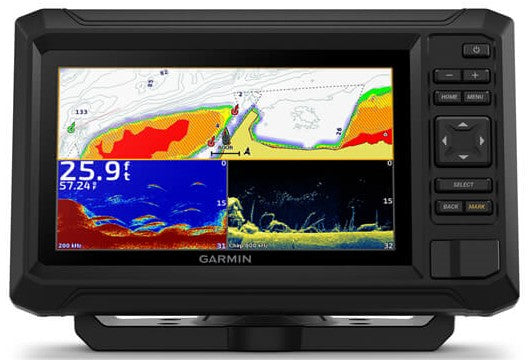

ECHOMAP™ UHD2 7" 8.6" x 5.6" x 3.2" (21.8 x 14.2 x 8.1 cm) Keyed 6.1" x 3.4", 7.0" (15.5 x 8.7 cm, 17.8 cm) 800 x 480 pixels WVGA, TN 2.2 lbs (1.0 kg) IPX7 Bail or Flush

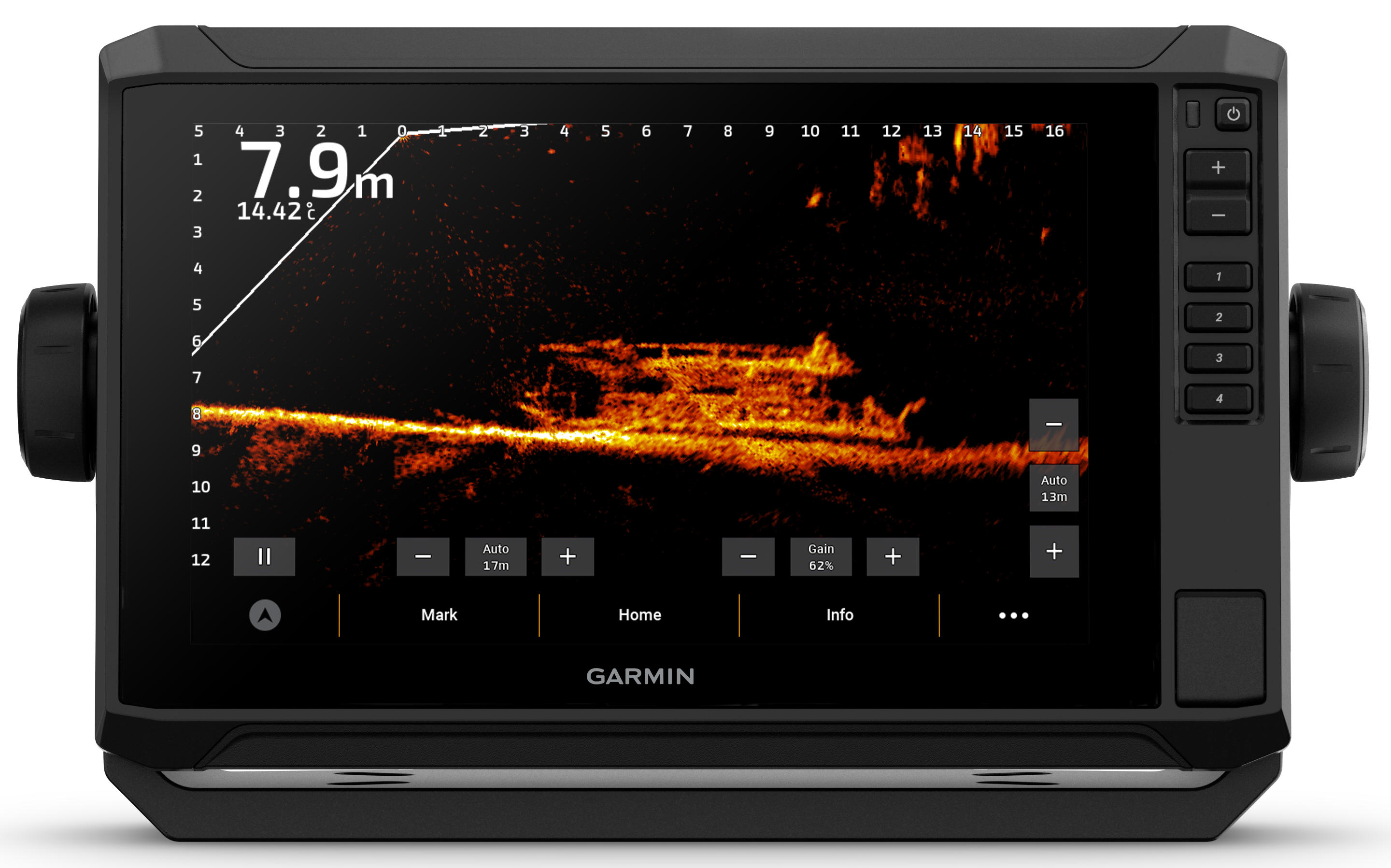

ECHOMAP™ UHD2 9" 10.4" x 6.5" x 3.2" (26.4 x 16.6 x 8.0 cm) Keyed 7.8" x 4.5", 9.0" (19.8 x 11.5 cm, 22.9 cm) 1024 x 600 pixels WVGA, TN 2.9 lbs (1.3 kg) IPX7 Bail or Flush



Sonar Features & Specifications:

Power Output: 500W
Traditional Sonar (Dual Frequency/Beam): built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
CLEARVÜ: built-in 260/455/800/1000/1200 kHz
SIDEVÜ: 6", 7",9": built-in 260/455/800/1000/1200 kHz
Panoptix Sonar Compatible: 6", 7", 9": YES
Livescope Compatible: 6",7",9": YES

Maps & Memory:

Accepts Data Cards: 500W
Waypoints: built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
Track Points: built-in 260/455/800/1000/1200 kHz
Tracks: 6", 7",9": built-in 260/455/800/1000/1200 kHz
Navigation Routes: 6", 7", 9": YES
NAVIONICS+ Inland: U.S. Lakes
NAVIONICS+ Costal: U.S. Costal



Electrical Features:

MODEL POWER INPUT TYPICAL CURRENT DRAW AT 12 VDC MAXIMUM CURRENT DRAW AT 12 VDC MAXIMUM POWER USAGE AT 10 VDC
ECHOMAP™ UHD2 5" 9 to 18 Vdc 1.0 A 1.5 A 18W
ECHOMAP™ UHD2 6" 9 to 18 Vdc 1.53 A 3.2 A 18.4W
ECHOMAP™ UHD2 7" 9 to 18 Vdc 1.52 A 3.2 A 18.3W
ECHOMAP™ UHD2 9" 9 to 18 Vdc 1.72 A 3.5 A 20.7W



Transducers:

TRANSDUCER TRADITIONAL SONAR CLEARVÜ SIDEVÜ POWER MAXIMUM DEPTH CABLE LENGTH NUMBER OF PINS

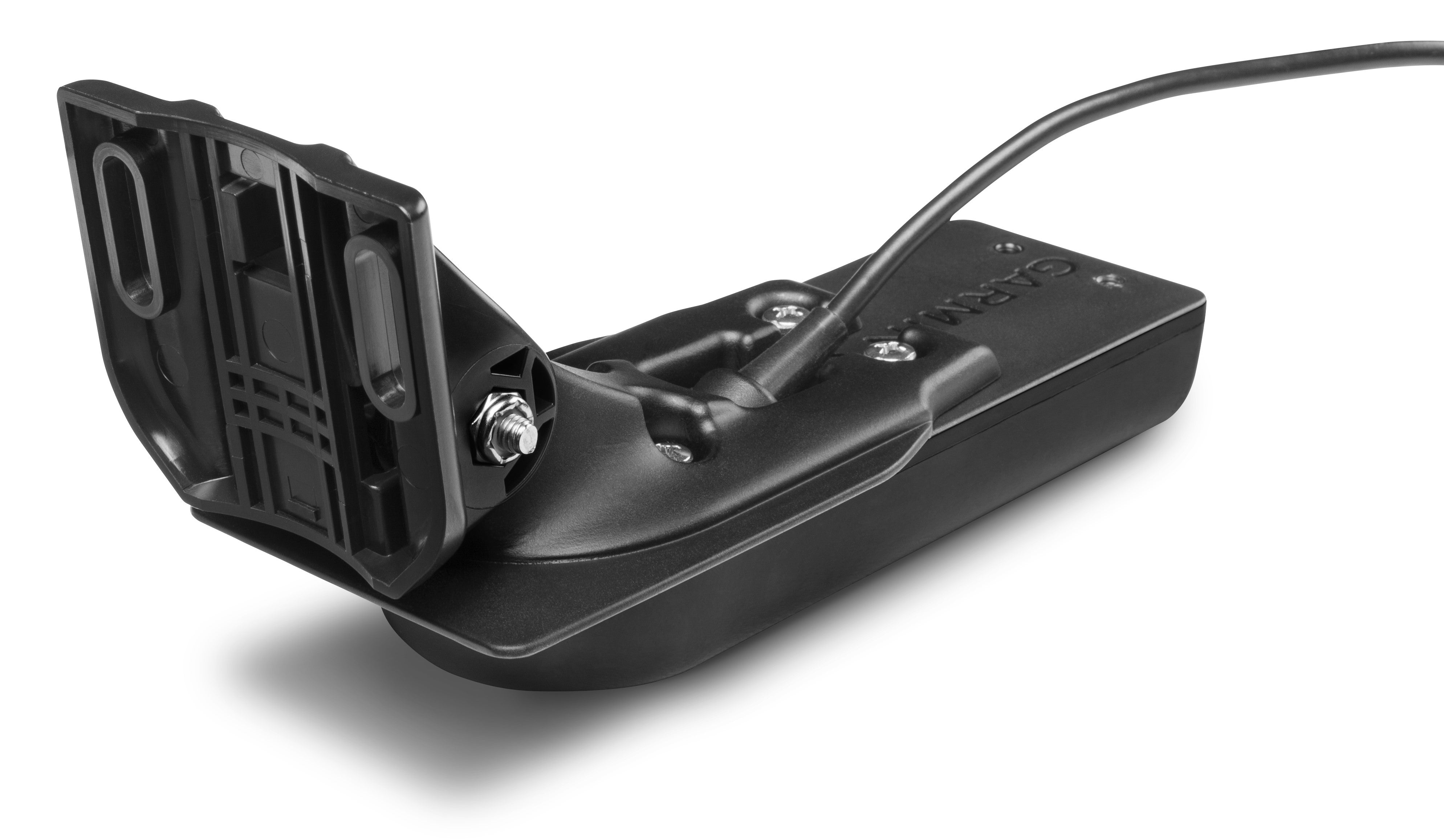

GT20-TM 77/200 KHZ 455/800 KHZ N/A Traditional 500 W; ClearVü 500 W Traditional: 1,900 ft.; ClearVü: 750 ft. 20 ft 4-pin

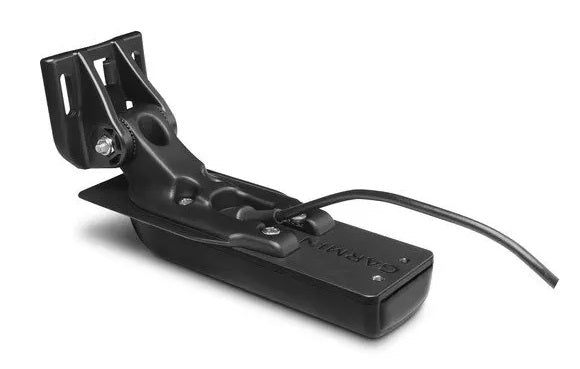

GT54-TM HW CHIRP UHD 800 KHZ 455/1200 KHZ CHIRP Traditional 350 W; ClearVü/SideVü 350 W CHIRP: 800 ft.; ClearVü 200 ft.; SideVü 500'; UHD SideVü 125' 20 ft 12-pin

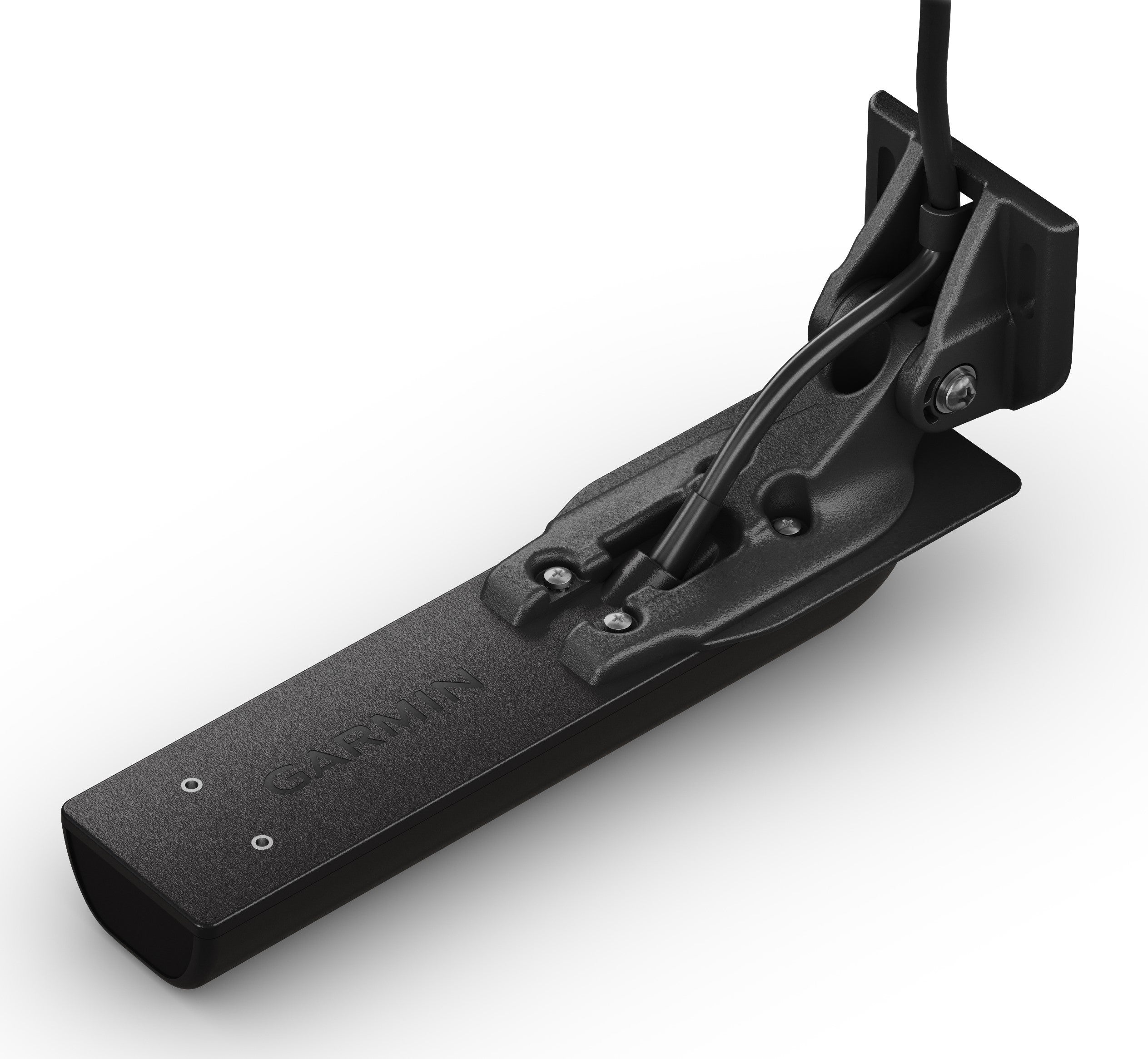

GT56-TM HW CHIRP 455/800/1000 KHZ 455/800/1000 KHZ Traditional 350 W; ClearVü/SideVü 500 W Traditional: 800 ft freshwater; ClearVü: 400 ft; SideVü: 500 ft 25 ft 12-pin
