NRS Swivel and Plates for Padded Raft Seats

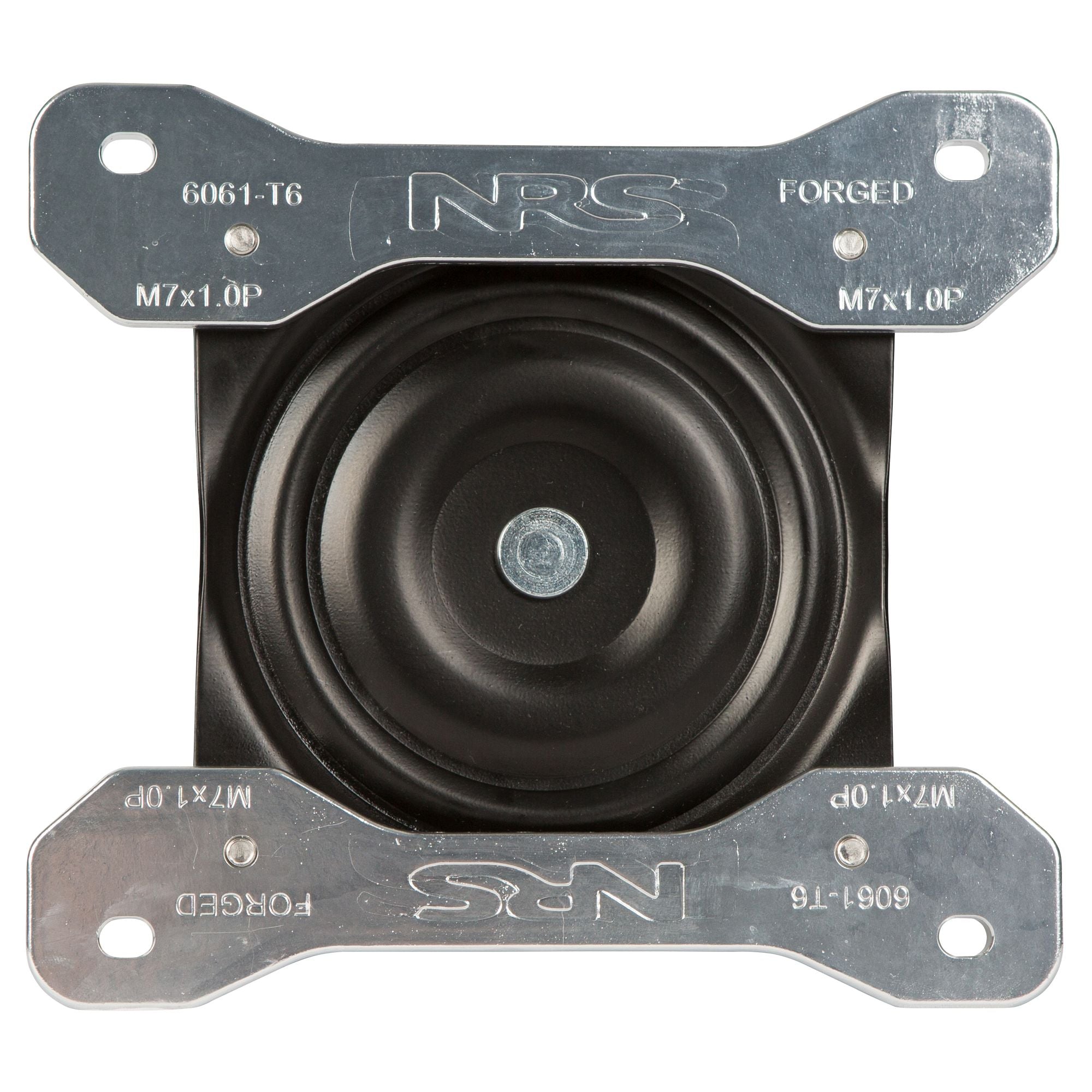

NRS Swivel and Plates for Padded Raft Seats [Top]

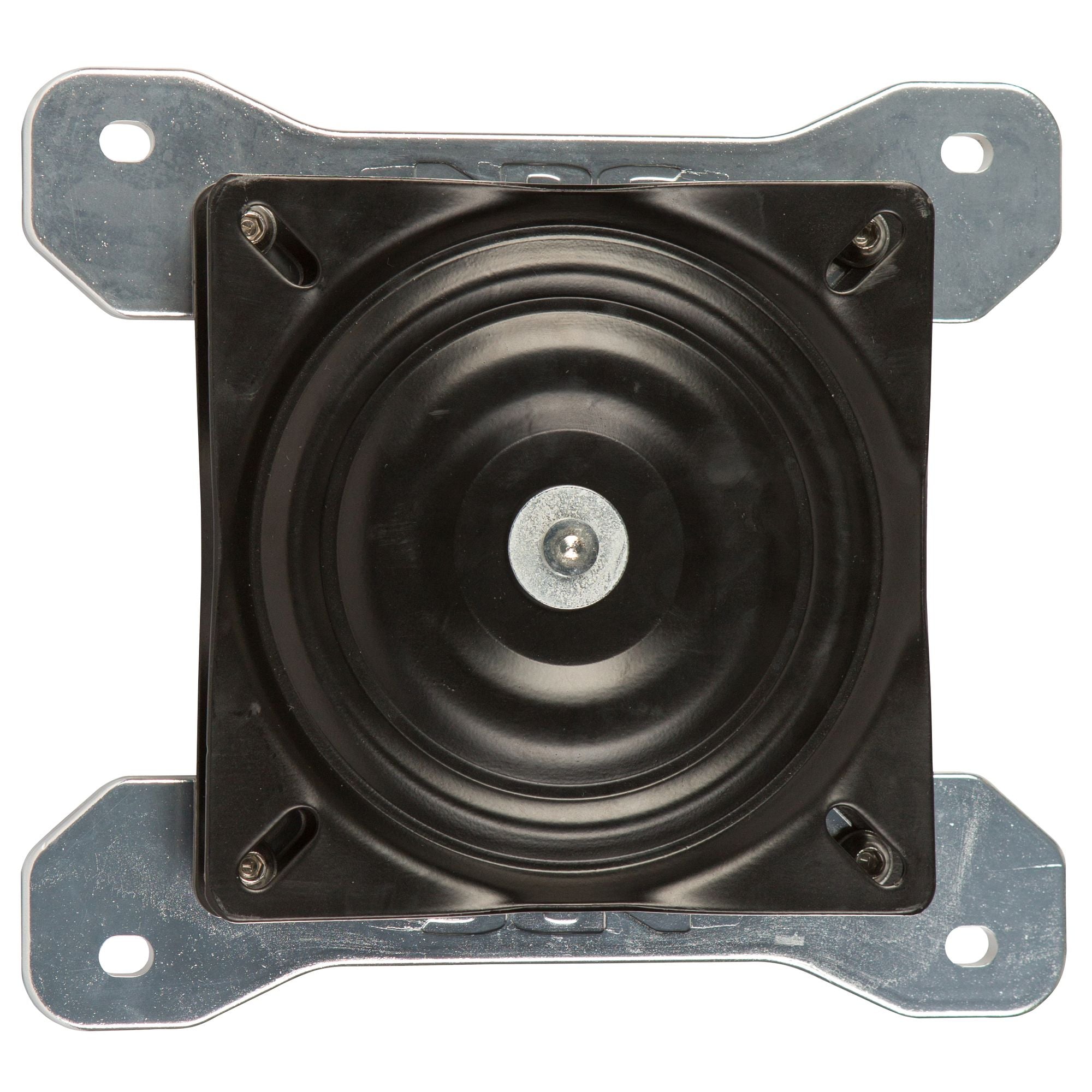

NRS Swivel and Plates for Padded Raft Seats [Bottom]

NRS Swivel and Plates for Padded Raft Seats

Price
$59.95
In Stock: Ships same day if ordered by 2PM EST
Brand: NRS
SKU: 94038.01.100
UPC: 603403349372

Turn your NRS Padded Raft Seat into a swivel seat with the NRS Swivel and Plates. Easily bolt the plates and swivel base onto your existing seat bar or the Universal Seat Mount. The unit has a swivel base that rotates 360 degrees and two hot-forged aluminum plates with bolt holes in a 7" x 7.5" pattern. The unit has four 1/4"-20 x 1" bolts, lock nuts, and eight flat washers. If your seat bar is older, drill four 1/4" holes in a 5.25" x 5.25" pattern. Transform your paddling and angling adventures on your raft by adding the NRS Swivel and Plates for Padded Raft Seats.

Features:

  • The unit has a swivel base, allowing the seat to rotate 360 degrees, and two hot-forged aluminum plates bolted.
  • The two aluminum plates have holes in the 7" x 7.5" bolt pattern for the NRS Low-Back and High-Back Seats. Attach your seat to the aluminum plates using the bolts included with it.
  • All seat plates on NRS Seat Bars and Angler Seat Bars made in the last several years will have bolt holes in the swivel's 5.25" x 5.25" pattern.
  • If you have an older seat bar without those holes, you can drill four 1/4" holes in that 5.25" x 5.25" pattern.
  • The unit has mounting hardware: 4 1/4"-20 x 1" bolts, lock nuts, and eight flat washers.
  • The Universal Seat Mount, Item # 94015.01, has hole patterns 7" x 7.5" and 5.25" x 5.25". It can be used to mount your swivel seat anywhere on the 1 5/8" frame pipe.
  • Seat plate measurements - 8.25" x 9.25"
  • Swivel plate measurements - 6.25" x 6.25"
  • Seat plate bolt hole pattern - 7" x 7.5"
  • Swivel plate bolt hole pattern - 5.25" x 5.25"
