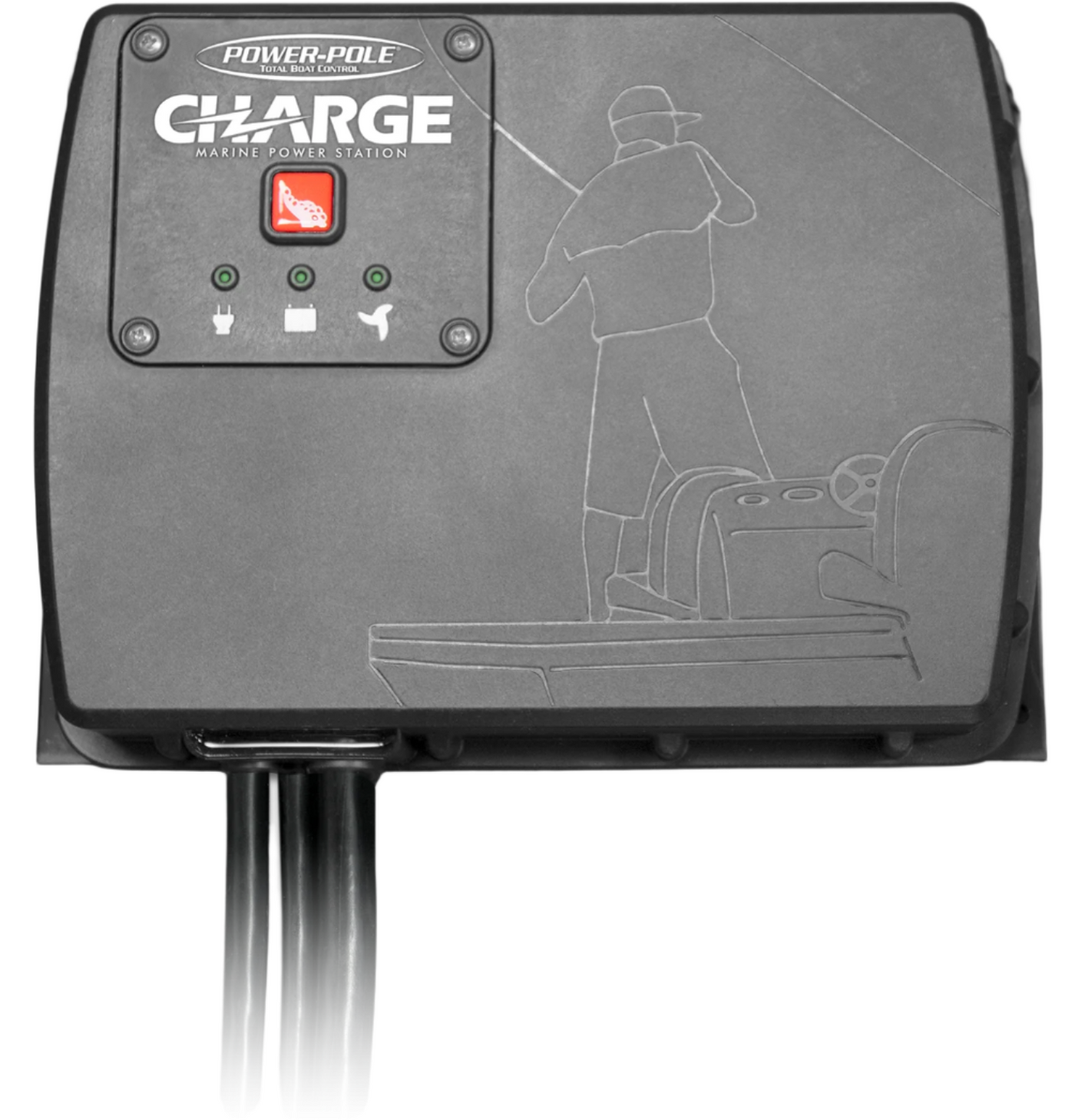

Power-Pole CHARGE Marine Power Management Station
The Power-Pole Charge Marine Power Management Station is a 500W power station is designed to replace all others. Power-Pole's unique technology combines the effect of three different devices, providing you with ultimate capability. This single unit acts as a standard battery charger, a charge-on-the-run, and an emergency start system. Easily controlled by the C-Monster app, you can see your battery life in real-time and prioritize whether you want your trolling or cranking batteries to recharge first. This unit will automatically move power between the two batteries and charge while on the run from the alternator while the motor is running. Having the ability to work with any battery type provides all boaters with the option to use this unique power station. Delivering up to 40 amps of power to your cranking battery and up to 25 amps of power to your trolling battery, this will quickly become a staple in many boats.
Key features and benefits:
- Protected by a 3-year warranty!*
- Works with all battery types
- 500-watt power station
- Built-in emergency power transfer
- Compatible with C-Monster app
- Up to 40 amps of power
- Automatically move power between batteries
- Charges on the run from alternator

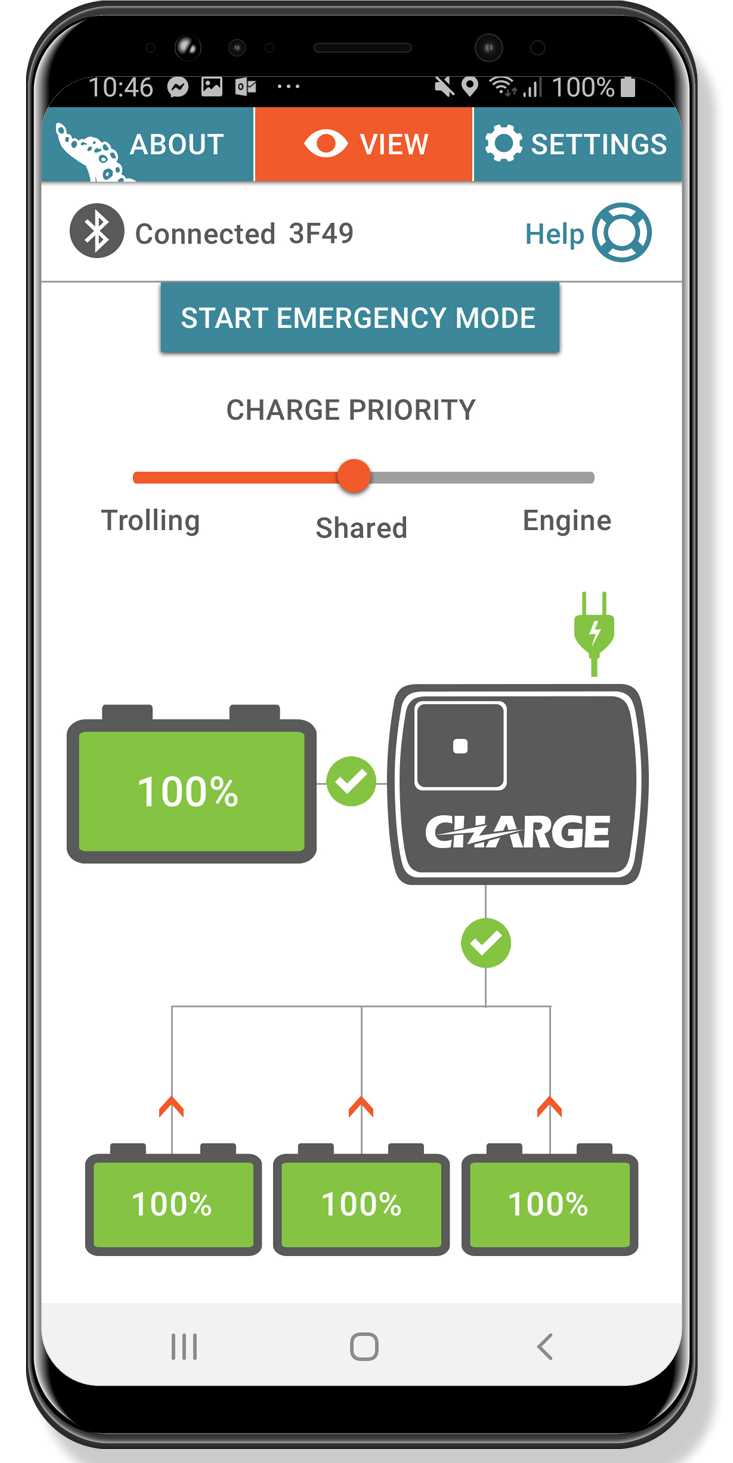

- Displays battery life in real-time
- Easy installation
Charge + Garmin Integration:
- Now compatible with select Garmin ECHOMAP and GPSMAP MFDs
- Instantly monitor your trolling motor & engine battery voltage
- Track the Amperage to and from your trolling motor & engine batteries for maximum efficiency
- With a simple touch on your Garmin MFD touchscreen =, you can direct power where it's needed most, precisely when you need it.
- Initiate Emergency Start at your fingertips
- Enhanced durability and reliability
- Total Weight: 8.75 lbs
Max 40 amps to the engine battery
Max 25 amps to the auxiliary batteries
Max 500W 12V engine battery charge from shore power
Max 500W 24/36V "run charge" from 12V engine battery and/or shore power
Max 500W 12V "back charge" from Auxiliary 24/36V battery to engine battery
- IP Rating: IP65
- Cable Length: 6.3 feet

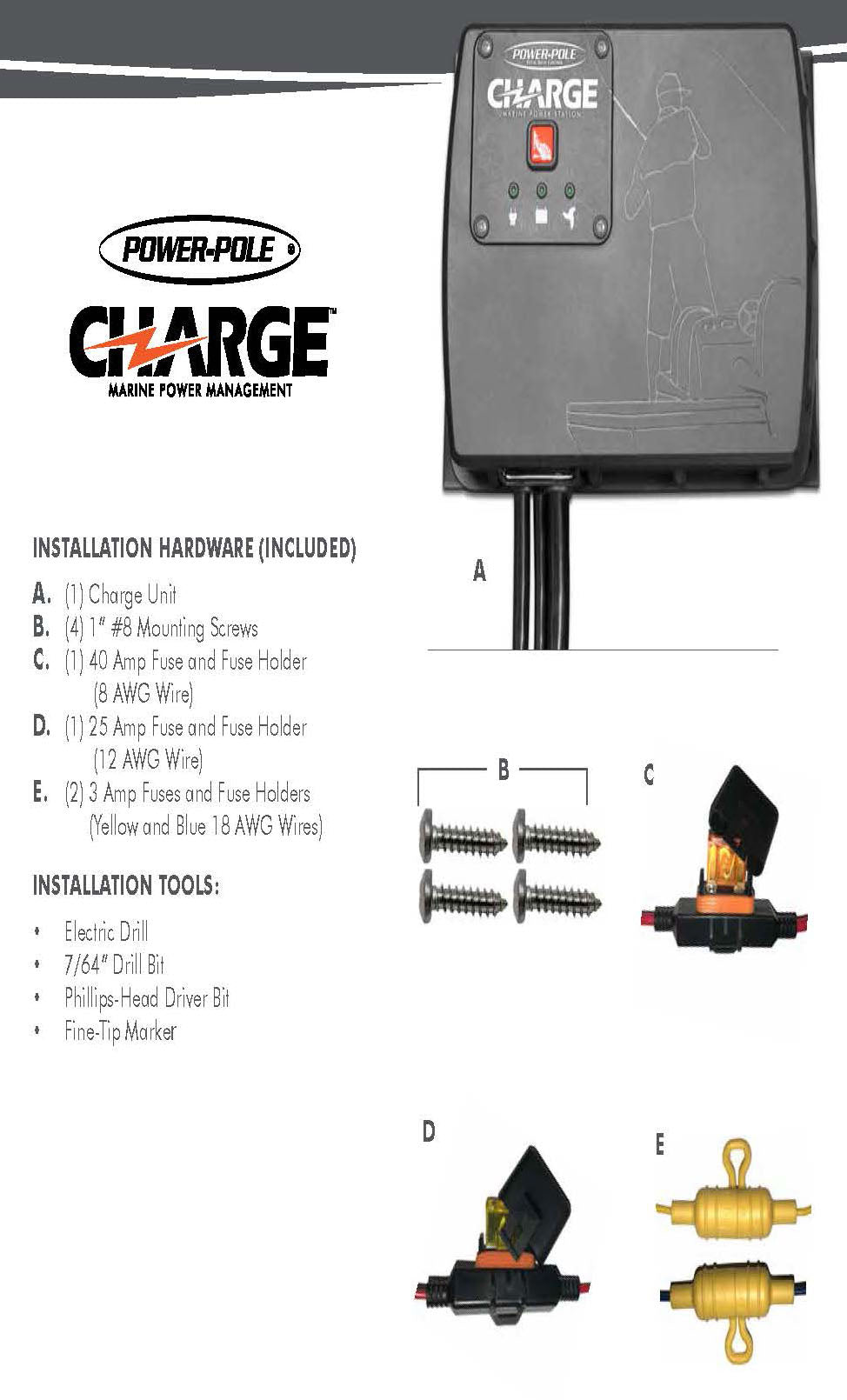

- (1) Charge Unit
- (4) 1" #8 Mounting Screws
- (1) 40 Amp Fuse and Fuse Holder (8 AWG Wire)
- (1) 25 Amp Fuse and Fuse Holder (12 AWG Wire)
- (2) 3 Amp Fuses and Fuse Holders (Yellow and Blue 18 AWG Wires)
Frequently Asked Questions:
What battery types is the CHARGE compatible with?
It's compatible with all battery types: Lead Acid, GEL, AGM, TPPL, and Lithium-Ion.
Can the CHARGE recharge batteries on its own?
Remember, it is not a power source. It can only charge via AC power or the alternator when running your motor.
Can I change the minimum battery setting?
Yes. However, the CHARGE is already set at optimum minimum battery settings.
Is the CHARGE waterproof?
Yes, however, we strongly recommend mounting your CHARGE in a dry area.
What safety features are built into the CHARGE?
Safety features include: reverse polarity protection for each battery, low voltage and overvoltage protection, over current protection on all output channels, temperature sensors based on battery chemistry, and short-circuit protection.
How much power does the CHARGE deliver?
500 watts of power for fast recovery time.
How many amps does the unit deliver to each battery?
Max of 40 amps to the engine battery and a max of 25 amps to the trolling motor batteries.
Is power lost when the CHARGE moves power back and forth between batteries?
No. It will actually extend your day on the water by applying power where it is needed.
How long will it take to charge my batteries?
Many variables, such as battery type, battery inefficiency, environmental factors, etc affect the battery charge time. It could take anywhere from a few minutes to 8 hours.
Can I still use the CHARGE without a smartphone?
Yes. However, the CHARGE will behave like a normal charger without being set up in the C-Monster app using a smartphone. If you don't have a smartphone, consider borrowing one from a friend for one-time use to get your preference set up on your CHARGE using the C-Monster app.
Is the CHARGE serviceable?
Is the CHARGE portable?
No. It is meant to be permanently mounted on a vessel.
Why do I need to disconnect my battery selector switch?
Battery Selector Switches aren't necessary with the CHARGE. It automatically manages power between batteries for you.
What if I cannot reach my batteries with the supplied wire?
A wire extension kit is available for purchase: the Power-Pole Charge 15 Foot Wire Extension Kit.
Installation and Owner's Manual: Power-Pole CHARGE Marine Power Management Station Installation Guide.
*Warranty provided directly by Power-Pole, not Fishing Online LLC. You must register your product here to activate your warranty. For full details and disclosure, please visit power-pole.com.
