Garmin ECHOMAP UHD2 Charplotter
The Garmin UHD 2 Chartplotters provide crisp, clean visuals that all anglers love. Coming equipped with the GT20-TM Transducer, the traditional ClearVu sonar has never been better. Distinct high contrast allows you to pinpoint fish and structure, making it easier than ever to break down water. With built-in U.S. LakeVu g3 freshwater lake maps, you can combine the Garmin Navionics+ technology to drop waypoints and routes accurately all over the lake. Why talk to a local when you can fish like one? They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 chartplotters with clear, crisp sonar and mapping.
Key features and benefits:

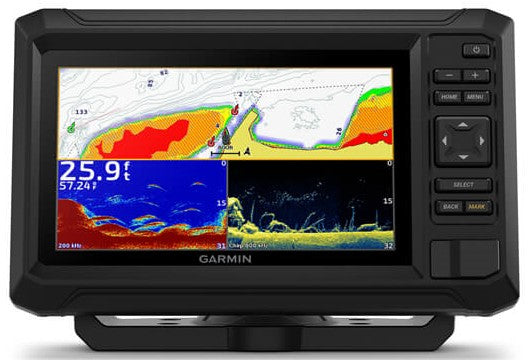

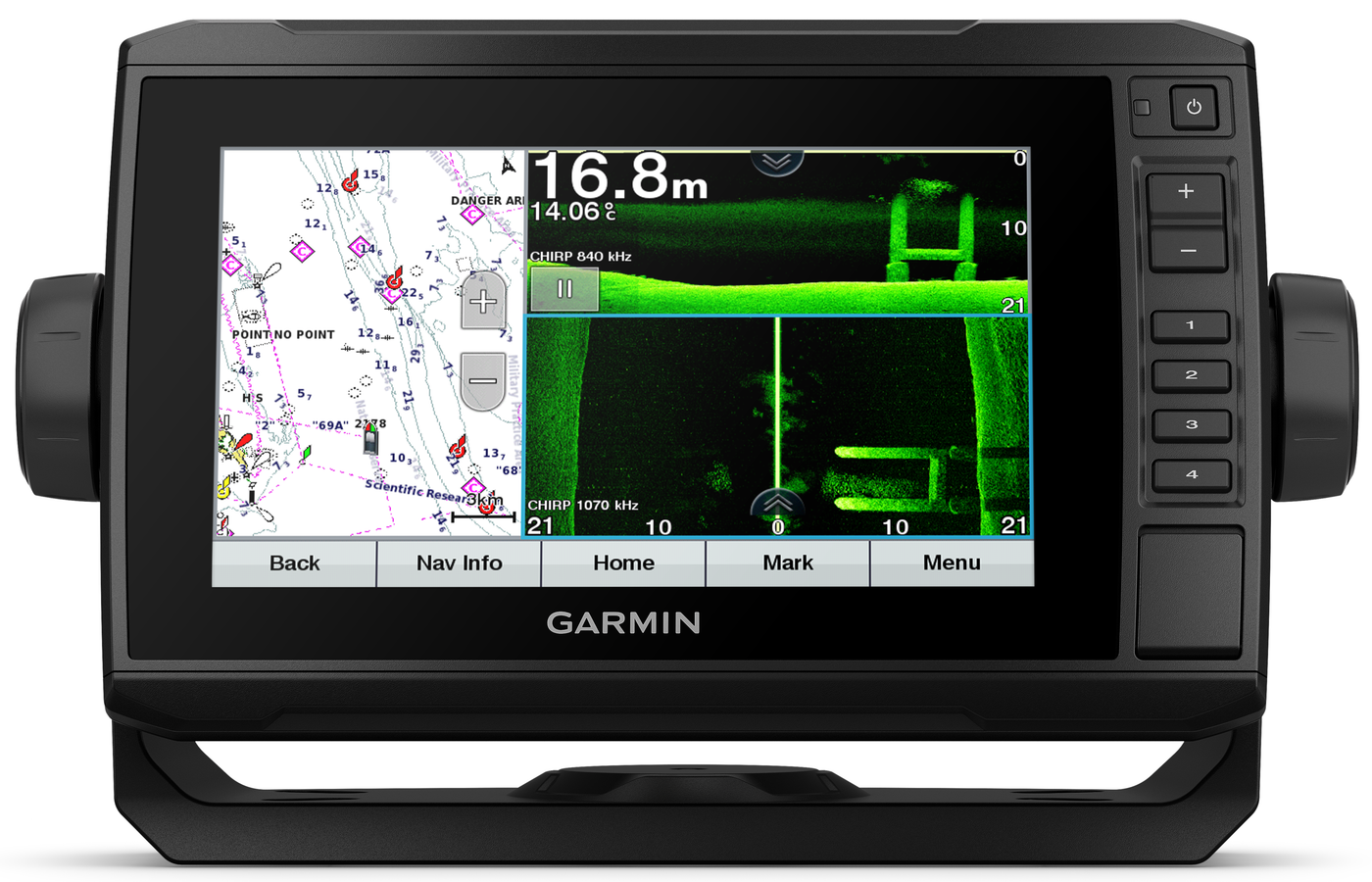

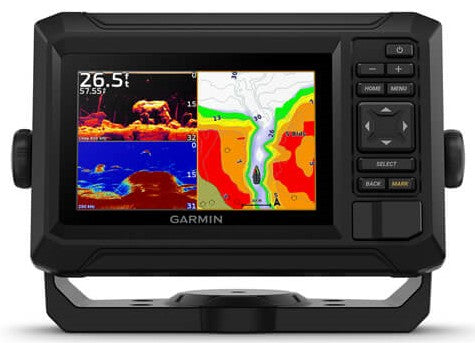

- The bright 5” and 7" keyed display is made for convenience
- Get double the views with Garmin CHIRP traditional and ClearVü scanning sonars
- What’s under the water looks even better with high-contrast vivid color palettes
- Wi-Fi® connectivity between compatible chartplotters makes it easy to share info
- Enjoy No. 1 in mapping with our LakeVü g3 with Navionics® data
SONAR SUPPORT
With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide.
VIVID COLOR PALETTES
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.
BUNDLE YOUR TRANSDUCER

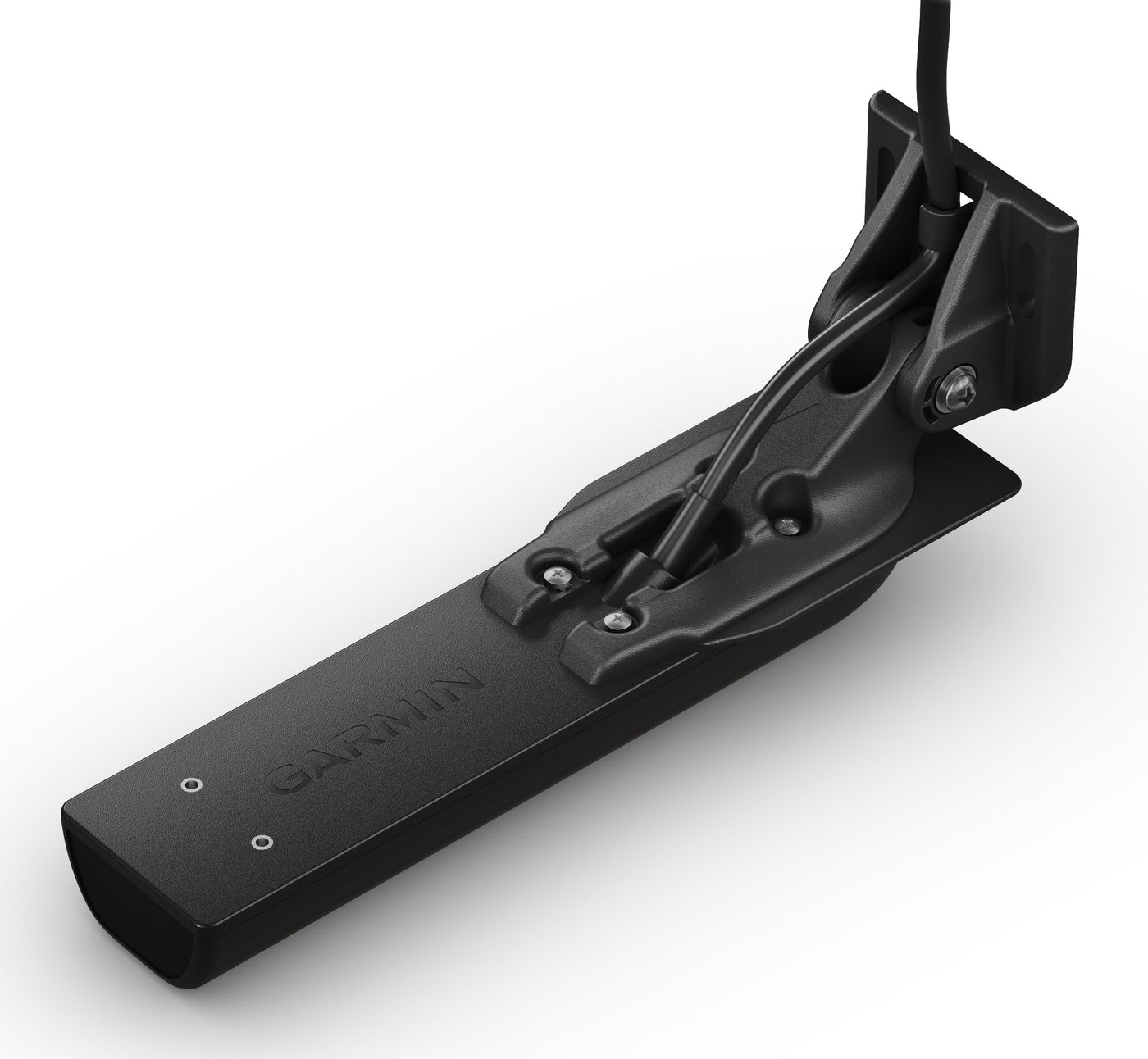

Your ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.
PRELOADED CHARTS
Know the waters you’re in as if you grew up fishing them by using built-in LakeVü g3 inland maps with support for Garmin Navionics+™ and Garmin Navionics Vision+™ marine cartography.
WIRELESS NETWORKING
If you have another compatible ECHOMAP UHD2 chartplotter on your boat, the 5” and 7” models can wirelessly share information — such as sonar, waypoints, and routes — with them.
ACTIVECAPTAIN® APP
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw™ Community data, and more.
General
Dimension
|
53cv: 7.4" x 4.8" x 2.4" (18.8 x 12.2 x 6.2 cm)
73cv: 9.1" x 5.6" x 2.6" (23.2 x 14.3 x 6.7 cm)
|
Input
|
Keyed
|
Display Size
|
53cv: 4.3" x 2.6" (10.9 x 6.6 cm)
73cv: 6.1" x 3.4" (15.5 x 8.7 cm)
|
Display Resolution
|
800 x 480 pixels
|
Display Type
|
WVGA, IPS
|
Weight
|
1.1 lbs and 1.5 lbs
|
Waterproof
|
IPX7
|
Mounting Options
|
Bail or flush
|
Sonar Features & Specifications
Power Output
|
500 W
|
Traditional Sonar
|
built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
|
ClearVu
|
built-in 260/455/800/1000/1200 kHz
|
Maps & Memory
Accepts Data Cards
|
1 microSD™ card; 32 GB maximum size
|
Waypoints
|
5000
|
Track Points
|
50000
|
Tracks
|
50 saved tracks
|
Navigation Routes
|
100
|
Electrical Features
Power Output
|
9 to 18 VDC
|
Typical Current Draw at 12 VDC
|
1.0 A
|
Maximum Current Draw at 12 VDC
|
1.5 A
|
Maximum Power Usage at 10 VDC
|
18 W
|
In the Box:
- ECHOMAP UHD2 53cv or 73cv

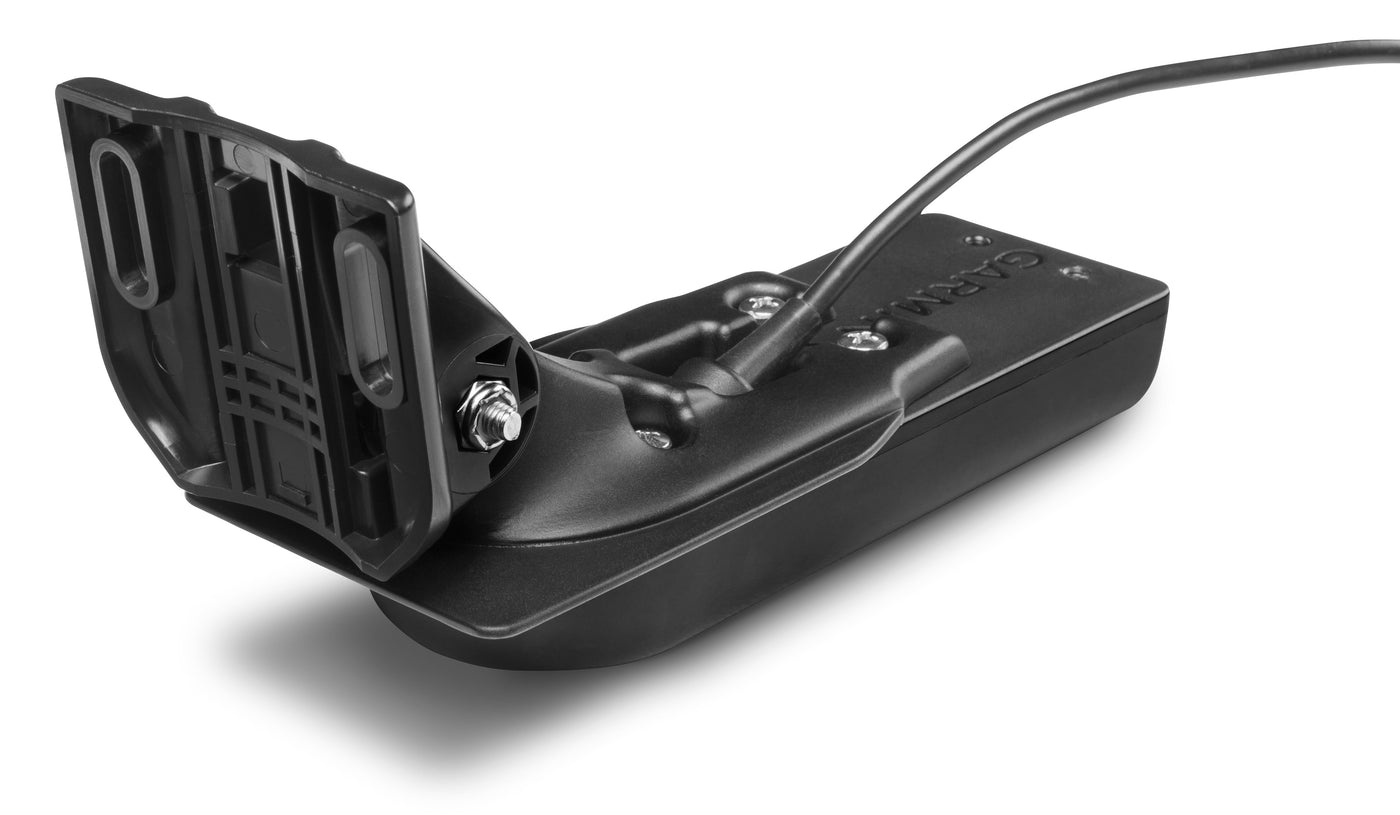

- GT20-TM transducer
- Power/data cable
- Tilt mount
- Flush mount
- Hardware
- Documentation
